RTUE35 | INA

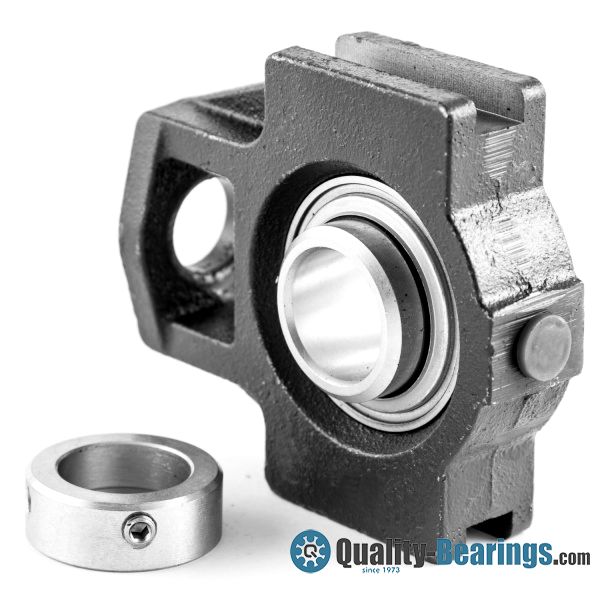

RTUE35 from INA
Important names for ball bearings and accessories
- Flange on the outer ring - the suffix R denotes support rollers with a spherical outer surface on the outer ring. Prefix: inner or outer ring of the bearing ... with roller set.
Further technical information on additional symbols for rolling bearings and accessories can be found here: Product codes
| Product features | |
| Inside diameter (mm) | 35 |
|---|---|
| Outside diameter (mm) | 131,5 |
| Width (mm) | 102 |
| Product weight (kg) | 1.6 |
| Typ | Clamping housing units |
| Producer | INA |
| Bearing number/code | RTUE35 |
| Country | SK |
| Minimum order (piece) | 1 |
| EAN | 4012802793765 |
Clamping housing units
There are many designs of flanged housing units; there are two-hole, three-hole and four-hole housings, oval, triangular, round and square housing shapes. Most of the flanged housings are made of gray cast iron, cast steel, nodular cast iron, but also sheet steel. Flange bearing housings are suitable for installing self-aligning ball bearings, spherical roller bearings and spherical roller bearings with a tapered bore, which are fastened to the shaft with adapter sleeves. The radial insert bearings installed in flanged housings are often sealed on both sides, thus protecting them from various influences such as dust, dirt and splash water.
